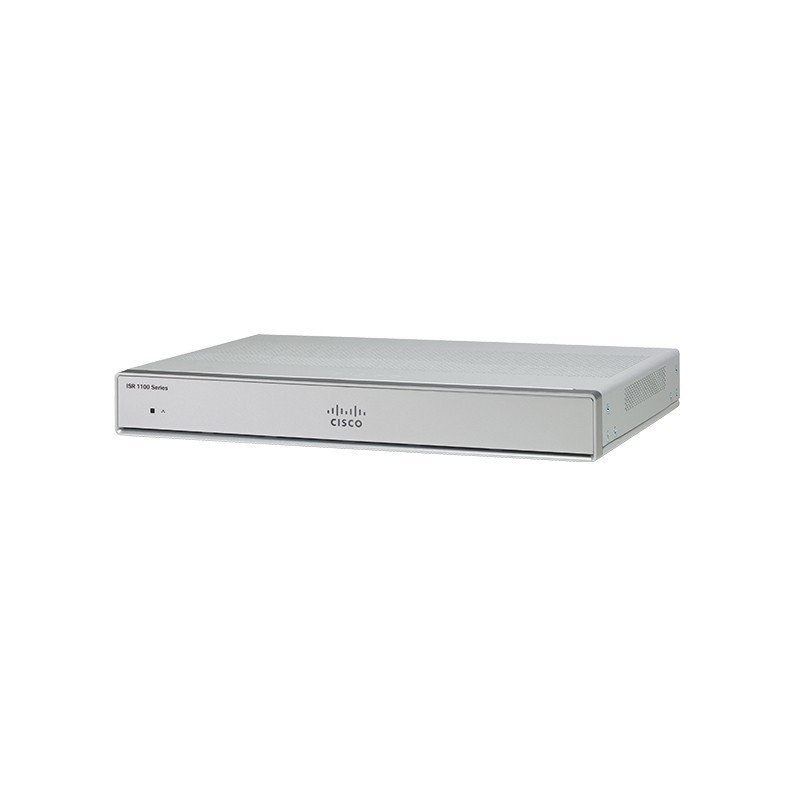

C1111-4PLTELA Cisco 1000 Series Integrated Services Router

SKU: C1111-4PLTELA

$ 4,000 $ 1,852

Best price guaranteed
Free simple returns
Free shipping on orders over $100
Manufacturer warranty included

C1111-4PLTELA Cisco 1000 Series Integrated Services Router

C1111-4PLTELA

The Cisco 1111 ISR 4-port LTE (LATAM and APAC) with a small form factor is best suited for small and midsize businesses, enterprise branches, and as customer premises equipment in managed services environments; it can be used in ATMs, retail stores, and kiosks. The C1111-4PLTELA model comes with four LAN ports and supports Power over Ethernet (PoE) and PoE+ to power branch devices such as IP phones and cameras. It has high performance with Gigabit Ethernet packet forwarding capabilities and the multicore architecture has separate cores for the data plane and control plane so your network ensures an optimized user experience. You can easily deploy this router with zero-touch provisioning using the plug-and-play capability. This model is configured for LATAM and APAC.

Dimensions & Weight

Depth : 9.6 in

Height : 1.7 in

Weight : 4.5 lbs

Width : 12.7 in

Environmental Parameters

Humidity Range Operating : 5 ? 95% (non-condensing)

Max Operating Temperature : 149 ?F

Min Operating Temperature : 32 ?F

Expansion Slots

Type : SIM

Header

Brand : Cisco

Country Kits : Asia Pacific, Latin America

Manufacturer : CISCO DS HARDWARE DIRECT

Model : 1111

Packaged Quantity : 1

Product Line : Cisco Integrated Services Router

Interface Provided

Connector Type : GPS connector

Type : Antenna

Connector Type : RJ-45

Interface : Ethernet 1000Base-T

Connector Type : RJ-45/SFP

Interface : Ethernet 1000Base-T/1000Base-X

Qty : 1

Type : WAN

Interface : Console

Type : USB 3.0

Interface : Ethernet 1000Base-T (PoE)

Interface : Ethernet 1000Base-T (PoE+)

Qty : 2

Type : LAN

Internet of Things (IoT)

Communications Technology : LTE Cat 6

Miscellaneous

Authentication Method : RADIUS

Color Category : Gray

Compliant Standards : AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1 Second Edition, CB, CISPR 22, CISPR 24, CNS 13438, EN 301 489-1, EN 301.489-24, EN 301.489-7, EN 301.511, EN 301.908-1, EN 301.908-13, EN 301.908-2, EN 60950-1 Second Edition, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN300-386, EN55022, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15, FCC CFR47 Part 22, FCC CFR47 Part 24, ICES-003, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI V-3

Encryption Algorithm : 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, 748-bit RSA, DES, ECDSA, IKE, MD5, SHA, Triple DES

Mobile Broadband

Cellular Protocol : DC-HSPA+, FDD LTE, HSPA+, LTE Advanced, TD-SCDMA, TDD LTE, UMTS

Modem

Type : Wireless cellular modem

Performance

Type : Encryption throughput

Value : 250 Mbps

Power Device

Frequency Required : 50/60 Hz

Nominal Voltage : AC 120/230 V

Slot Provided

Free Qty : 1

Total Qty : 1

Flash Memory

Installed Size : 4 GB

Networking

Compliant Standards : IEEE 802.11i, IEEE 802.11r, IEEE 802.1ag, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at

Connectivity Technology : Wired

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Features : 2T2R MIMO technology, Access Control List (ACL) support, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Class-Based Weighted Fair Queuing (CBWFQ), Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), Dynamic Multipoint VPN (DMVPN), Embedded Event Manager (EEM), Encapsulated Remote SPAN (ERSPAN), IPFIX, Location ID Separation Protocol (LISP), Management Information Base (MIB) II, Maximum Ratio Combining (MRC), NetFlow, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Quality of Service (QoS), Weighted Random Early Detection (WRED)

Form Factor : Desktop

Integrated Switch : 4-port switch

Key Features : Firewall, USB port, VPN support

Network Transport Protocol : DHCP, DNS, IPSec, L2TPv3, PPPoE

Remote Management Protocol : CLI, RMON, SNMP, TR-069

Routing Protocol : BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, HSRP, IGMPv3, IS-IS, MPLS, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RSVP, Static IP routing, VRRP

Status Indicators : Status

Type : Router

WAN Ports Qty : 2

RAM

Installed Size : 4 GB
